regi

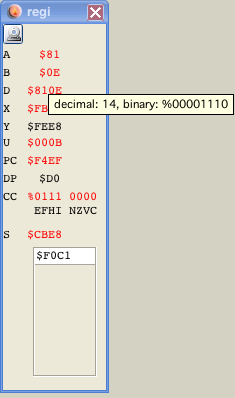

regi window

All registers are displayed.

• tooltips will show the translation to decimal and hex (+ 2 complement).

• double click on a "address" register will initiate jump to that address in dissi

• SHIFT double click on a "address" register will initiate jump to that address in dumpi

• the table under "S" shows the current callstack

• double click on a callstack address will initiate jump to that address in dissi

• red registers changed since last regi update

• regi also display the bank (in [] after pc)

• at the top the current cyclecount is displayed

Notice:

• the callstack is not the contents of the stack!


• the callstack only has "subroutine"-return-addresses!

• the callstack might also get confused if the stack is changed programmatically (like LDS   #$C800)
