vinfi window

Vector information window.

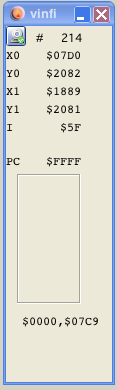

Here you can see some data of a selected vector. The data shown are:

• on the first line you see the currently drawn count of vectors
  The count is related to the display routine though - which means patterned vectors are not counted as one vector, but are counted by how many times the light is switched on or off - this will NOT be fixed - this is a feature not a bug :-)!

• the coordinates

• a tooltip displays the distance

• intensity of the vector

• the PC where the ~BLANK signal became 1 (when the vector was finished drawing)

• and the callstack at that time

• double click on PC will initiate jump to that address in dissi

• double click on a callstack address will initiate jump to that address in dissi

Notice:
The callstack is not the contents of the stack!
The callstack only has "subroutine"-return-adresses!
Callstack is only available if "collect vector information" is enabled in the configuration.

Mouse
Below the callstack, while moving over the emulation window, you can see the mouse-coordinates displayed. These coordinates are calculated to represent the actual integrator values needed for that position. This means the mouse coordinates are displayed in vectrex integrator/coordinates.
